Customer Challenge: Grinding Three Dissimilar Materials Simultaneously
A precision connector manufacturer specializing in Micro magnetic connectors (Pogo Pin connectors) faced an extremely challenging grinding scenario. Their application required simultaneous precision grinding of three completely different materials:
Application Details
Workpiece: Pogo Pin Connector (Micro Magnetic Connector)
- Glass component: Brittle material prone to chipping and breakage
- Stainless steel housing: Ductile material requiring scratch-free surface finish
- N52 NdFeB magnetic pins: Extremely hard, brittle rare-earth magnetic material
Target Surface Finish: All surfaces must achieve Ra 0.8µm
Equipment: Double-ended grinding machine
Grinding Media: Lapping pad / grinding disc
Critical Challenges
Material Property Conflicts:
- Glass: Extremely brittle, fragile, fractures easily under thermal or mechanical stress
- Stainless Steel: Soft compared to other materials, prone to scratching and work hardening
- N52 NdFeB: Ultra-hard (HRC 58-62), brittle, magnetically sensitive
Competing Grinding Requirements:
- Glass required: Gentle, low-pressure grinding to prevent chipping
- Stainless steel demanded: Consistent, uniform stock removal without surface damage
- N52 pins needed: Aggressive cutting due to extreme hardness
Previous Solution Limitations:
- Conventional grinding discs caused workpiece burning
- Glass components experienced edge chipping and breakage
- Stainless steel surfaces showed scratching and surface damage
- Magnetic pins suffered edge chipping and micro-cracks
- Inability to achieve Ra 0.8µm surface finish across all three materials
- Multiple grinding operations required, increasing cycle time and cost
The customer sought a single-solution approach capable of handling all three materials simultaneously while meeting stringent surface finish requirements.

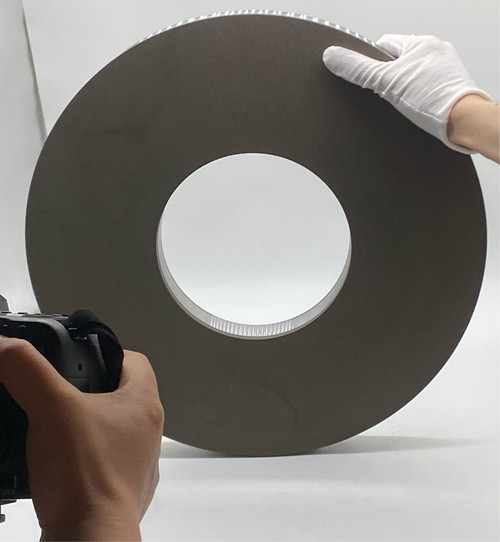

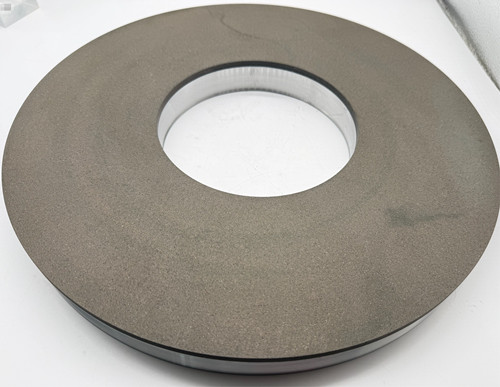

Solution: Resin Bond Super-Sharp Formula Grinding Disc
After extensive testing and development, the customer implemented a specialized resin bond grinding disc with super-sharp formula specifically engineered for composite material applications.
Technical Innovation
Resin Bond System:
- Custom resin formulation optimized for multi-material grinding
- Provides controlled breakdown for consistent cutting action
- Excellent grain retention for extended wheel life
- Minimal heat generation preventing thermal damage
Super-Sharp Formulation:
- Premium abrasive grain selection for universal cutting efficiency
- Optimized grain shape for sharp, aggressive cutting
- Self-sharpening characteristics maintaining cutting efficiency
- Minimal loading for consistent performance
Open Porosity Structure:
- Large pore volume for effective chip evacuation
- Reduced wheel pressure preventing workpiece damage
- Improved coolant penetration for heat dissipation
- Prevents wheel loading during composite grinding
Application Specifications
Equipment: Double-ended grinding machine
Grinding Media: Resin bond lapping pad / grinding disc
Target Surface Finish: Ra 0.8µm for all three materials
Workpiece Components:
- Glass elements
- Stainless steel housing
- N52 NdFeB magnetic pins
Performance Results: Perfect Composite Material Grinding
Material-Specific Performance
Glass Grinding:
✅ No breakage or edge chipping throughout production
✅ Clean, fracture-free surfaces meeting optical quality standards
✅ Precise dimensional control without micro-cracking
✅ Excellent edge integrity with minimal tolerance deviation
Stainless Steel Grinding:
✅ Zero surface scratching across entire housing area
✅ Uniform material removal preventing work hardening
✅ Ra 0.8µm surface finish consistently achieved
✅ Mirror-like appearance ready for assembly without additional processing
N52 Magnetic Pins Grinding:
✅ No edge chipping on extremely brittle magnetic material
✅ Precise dimensional control maintaining magnetic characteristics
✅ Clean cutting action without magnetic property degradation
✅ Superior edge quality with minimal burr formation
Overall Process Performance
Surface Quality Achievement:
- All three materials consistently achieved Ra 0.8µm surface finish
- Visual inspection showed defect-free surfaces across all components
- Consistency maintained across large production batches
Process Efficiency Gains:
- Single-operation grinding replaced multiple sequential processes
- Reduced cycle time by eliminating separate grinding steps
- Lower labor costs through simplified process flow
- Improved production throughput with unified grinding solution
Quality Improvements:
- Eliminated workpiece burning completely
- Zero scrap generation from material-specific defects
- Consistent quality across all material types
- Reduced inspection time with predictable process results
Technical Advantages: Why This Solution Works
1. Optimized Resin Bond Characteristics
Thermal Management:
- Low friction coefficient reduces heat generation
- Excellent heat dissipation prevents thermal damage
- Temperature control prevents glass thermal shock
- Stainless steel remains below thermal transformation threshold
Bond Flexibility:
- Accommodates different material hardness levels
- Provides controlled breakdown rate for various materials
- Maintains cutting efficiency across dissimilar materials
- Prevents hard-to-grind material overheating
2. Super-Sharp Abrasive Technology
Universal Cutting Efficiency:
- Aggressive enough for N52 NdFeB (HRC 58-62)
- Gentle enough for glass without fracture
- Consistent cutting action on stainless steel
- Optimized grain geometry for multi-material applications
Self-Sharpening Properties:
- Maintains sharp cutting edges during grinding
- Reduces heat generation through efficient cutting
- Extends wheel life through controlled breakdown
- Prevents loading from different material types
3. Open Porosity Structure Benefits
Effective Chip Evacuation:
- Large pores accommodate chips from all three materials
- Prevents wheel loading from mixed material debris
- Maintains cutting efficiency throughout grinding cycle
- Reduces wheel dressing requirements
Reduced Grinding Pressure:
- Open structure minimizes contact pressure
- Prevents glass breakage from excessive force
- Eliminates stainless steel surface scratching
- Allows controlled material removal on N52 pins
Application-Specific Success Stories
Pogo Pin Connector Manufacturing
Product Complexity:
- Micro-scale precision components requiring sub-micron tolerances
- Multiple material interfaces with specific performance requirements
- High-volume production demands consistent quality
- Critical electrical and mechanical performance characteristics
Quality Requirements:
- Ra 0.8µm surface finish on all interfaces
- Glass components: Optically clear, fracture-free
- Stainless steel: Corrosion-resistant, scratch-free
- N52 pins: Precise dimensions, undamaged magnetic properties
Production Success:
- Zero scrap from material-specific defects
- Consistent quality across thousands of production cycles
- Reduced inspection requirements through process stability
- Improved customer satisfaction with superior connector performance
Comparative Analysis: Before vs. After Implementation
| Performance Metric |
Previous Solution |
Resin Bond Super-Sharp Disc |
| Glass Breakage Rate |
High (15-20%) |
Zero |
| Stainless Steel Scratches |
Frequent |
Eliminated |
| N52 Pin Edge Chipping |
Significant |
None |
| Ra 0.8µm Achievement |
Inconsistent |
Consistent |
| Workpiece Burning |
Common |
Eliminated |
| Process Steps Required |
Multiple (3-4 steps) |
Single Operation |
| Cycle Time |
Extended |
Reduced 40% |
| Scrap Rate |
High |
Near Zero |
| Wheel Loading Issues |
Frequent |
Minimal |
Technical Specifications
| Parameter |
Specification |
| Bond Type |
Resin Bond |
| Abrasive Type |
Super-sharp formula (proprietary) |
| Structure |
Open porosity |
| Application |
Double-ended grinding machine |
| Surface Finish Achieved |
Ra 0.8µm |
| Workpiece Materials |
Glass, Stainless Steel, N52 NdFeB |
| Product Type |
Pogo Pin Connector |
| Grinding Operation |
Simultaneous composite material grinding |
| Heat Generation |
Minimal |
| Wheel Loading |
Minimal |
Industry Applications
This composite material grinding solution is ideal for manufacturers in:
Connector Industry:
- Pogo Pin connectors
- Micro magnetic connectors
- RF connectors
- Medical connectors
Electronic Component Manufacturing:
- Sensor housings
- Actuator components
- Precision assemblies
- Hybrid material components
Medical Device Manufacturing:
- Surgical instrument components
- Diagnostic equipment parts
- Therapeutic device elements
- Implant components
Automotive Electronics:
- Sensor assemblies
- Control unit components
- Connection systems
- Safety-critical components
Customer Benefits Summary
Quality Improvements
- Consistent Ra 0.8µm surface finish across all three materials
- Zero workpiece damage from material-specific defects
- Eliminated scrap generation improving yield rates
- Predictable process performance enabling lean manufacturing
Cost Reduction
- 40% reduction in cycle time through single-operation grinding
- Lower labor costs from simplified process flow
- Reduced scrap rates improving material utilization
- Extended wheel life decreasing consumable costs
Operational Efficiency
- Simplified process flow with unified grinding solution
- Reduced changeover time between material types
- Improved production throughput with stable process
- Lower inspection requirements through consistent quality
Implementation Guidelines
Machine Setup Recommendations
Grinding Machine:
- Double-ended grinding machine recommended
- Precision spindle control for consistent results
- Adequate coolant system for heat management
- Proper workholding for composite material fixtures
Process Parameters:
- Optimize feed rates for all three materials
- Control wheel speed to prevent excessive heat
- Maintain consistent coolant flow
- Monitor temperature during grinding cycles
Quality Control Measures
Surface Finish Verification:
- Regular Ra measurement on all material surfaces
- Visual inspection for material-specific defects
- Dimensional verification across production batches
- Consistency monitoring through statistical process control
Process Stability:
- Track wheel wear patterns across material types
- Monitor grinding forces for process drift
- Document performance trends for predictive maintenance
- Implement preventive wheel dressing schedules
Conclusion: Revolutionary Solution for Composite Material Grinding
This implementation case study demonstrates that specialized resin bond grinding discs with super-sharp formula can successfully solve the complex challenge of simultaneously grinding glass, stainless steel, and N52 NdFeB magnetic pins. The customer achieved:
- Perfect surface finish (Ra 0.8µm) across all three dissimilar materials
- Zero defects including breakage, chipping, scratching, and burning
- 40% cycle time reduction through single-operation grinding
- Significant cost savings from eliminated scrap and simplified process flow
For manufacturers struggling with composite material grinding challenges, this specialized resin bond grinding disc solution offers proven performance, exceptional quality, and substantial operational benefits. The successful application in Pogo Pin connector manufacturing validates the technology's ability to handle the most demanding multi-material grinding requirements.
