In the rapidly evolving landscape of advanced manufacturing, the precision processing of hard and brittle materials represents one of the most challenging yet critical aspects of modern industrial production. Ceramic diamond double disc grinding wheels have emerged as the premier solution for achieving exceptional precision, efficiency, and surface quality in the processing of ceramic materials such as alumina (Al₂O₃), silicon carbide, and other advanced ceramics. These specialized grinding tools represent the cutting edge of abrasive technology, enabling manufacturers to achieve unprecedented levels of flatness, parallelism, and surface finish while maintaining high productivity levels essential for competitive global markets.

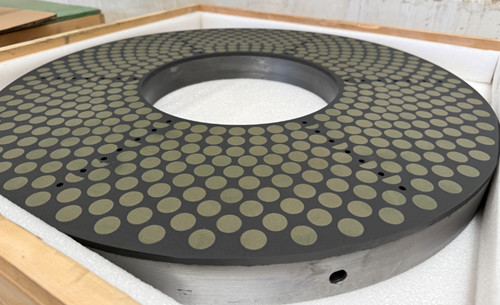

Ceramic diamond double disc grinding wheels are engineered specifically for high-precision double-sided grinding operations on hard and brittle materials. This advanced grinding technology enables simultaneous processing of both workpiece surfaces, delivering exceptional geometric accuracy and surface quality while maximizing production efficiency. The ceramic bond system provides superior performance characteristics that make these grinding wheels ideal for demanding applications across electronics, semiconductor manufacturing, precision mechanical components, and sealing elements.
The fundamental advantage of double disc grinding lies in its ability to achieve precise thickness control while simultaneously delivering superior surface quality on both workpiece surfaces. This capability is particularly valuable for ceramic materials, which present unique machining challenges due to their inherent hardness, brittleness, and sensitivity to thermal damage during processing operations.
The Critical Role of Ceramic Materials in Modern Manufacturing
Advanced ceramics have become indispensable materials in numerous high-technology applications due to their exceptional properties including high hardness, excellent wear resistance, superior thermal stability, and outstanding electrical insulation characteristics. These materials find extensive applications in:
- Electronics and Semiconductor Components: Substrates, insulators, and circuit board components requiring precise dimensional control and surface quality
- Precision Mechanical Systems: Seal rings, valve plates, and bearing components demanding exceptional flatness and parallelism
- Aerospace Applications: Thermal protection systems, structural components, and wear-resistant surfaces
- Medical Devices: Biocompatible components requiring precise geometric accuracy and surface finish
- Automotive Industry: Ceramic brake components, sensor housings, and electronic subsystem components
The increasing demand for ceramic components across these diverse industries has created growing requirements for precision processing solutions capable of meeting exacting quality standards while maintaining production efficiency.
Exceptional Performance Capabilities and Technical Specifications
Superior Geometric Precision
Modern ceramic diamond double disc grinding systems deliver exceptional geometric accuracy that meets the most demanding industry requirements:
- Flatness Control: Achieving flatness specifications of ≤2μm, with the capability to reach exceptional precision of 0.0003mm (0.3μm) for the most demanding applications
- Parallelism Accuracy: Maintaining parallelism within ≤2μm across the entire workpiece surface, ensuring uniform thickness and dimensional consistency
- Surface Finish Quality: Delivering surface roughness (Ra) values ranging from 0.01–0.2μm, enabling mirror-like surface finishes that eliminate the need for additional finishing operations
- Dimensional Stability: Maintaining consistent thickness control within tight tolerances across production batches, ensuring part-to-part uniformity
Material Versatility and Processing Capabilities
Ceramic diamond double disc grinding wheels excel in processing a wide range of advanced ceramic materials:
- Alumina Ceramics (Al₂O₃): The most widely used ceramic material, valued for its excellent electrical insulation, wear resistance, and thermal stability
- Silicon Carbide Ceramics: Exceptionally hard materials known for superior thermal conductivity and chemical resistance
- Zirconia Ceramics: Advanced ceramic materials combining high strength with exceptional toughness for demanding applications
- Silicon Nitride Ceramics: High-performance ceramics offering excellent mechanical properties and thermal shock resistance
- Specialty Ceramics: Advanced ceramic composites and engineered ceramic materials for specific application requirements
Production Efficiency and Batch Processing Capabilities
The dual-surface processing capability of double disc grinding systems enables exceptional production efficiency:
- Simultaneous Processing: Both workpiece surfaces are processed simultaneously, reducing cycle times by up to 80% compared to sequential single-sided grinding operations
- High Volume Production: Capable of processing large batches of components with consistent quality, making them ideal for high-volume manufacturing environments
- Reduced Handling Requirements: Single-operation processing eliminates the need for workpiece repositioning, reducing handling time and potential for damage
- Optimized Workflow: Efficient batch processing capabilities enable streamlined production operations and improved overall equipment utilization
Proven Performance: Real-World Application Success
Ceramic Seal and Alumina Plate Processing Case Study
A compelling demonstration of ceramic diamond double disc grinding capabilities is evident in the processing of ceramic seals and alumina plates using Speedfam machine tools. This application showcases the exceptional performance characteristics that manufacturers can expect from properly specified and implemented grinding solutions.
Operating Parameters and Results:
- Material Removal Rate: Single-pass material removal of 0.2mm per operation, demonstrating efficient material removal capabilities
- Production Capacity: Processing 150 pieces per grinding wheel cycle, maximizing production throughput and wheel utilization
- Geometric Accuracy: Achieving flatness of 0.0003mm (0.3μm), representing exceptional geometric precision for ceramic components
- Surface Quality: Delivering perfect mirror surface finish with Ra 0.01μm, eliminating the need for additional finishing operations
Economic and Operational Benefits:
- Extended Wheel Life: Exceptional wheel service life reduces tooling costs and minimizes wheel change frequency
- Reduced Dressing Requirements: Low dressing frequency increases machine uptime and reduces abrasive consumption
- Enhanced Production Efficiency: Optimized processing parameters maximize throughput while maintaining quality standards
- Improved Yield Rates: Consistent processing quality reduces scrap rates and improves overall production yield
Technical Advantages and Innovation
Advanced Ceramic Bond Technology
The ceramic bond system represents a critical technological advancement in diamond wheel performance, offering numerous advantages over traditional bond systems:
- Superior Chip Evacuation: Optimized bond structure enables efficient removal of grinding debris, preventing loading and maintaining consistent cutting performance
- Minimal Thermal Damage: Advanced thermal management characteristics reduce heat generation during grinding, protecting ceramic materials from thermal stress and micro-cracking
- Exceptional Wear Resistance: Engineered ceramic composition provides outstanding resistance to abrasive wear, extending wheel service life and reducing operational costs
- Batch Consistency: Uniform bond structure and diamond distribution ensure consistent performance across production batches, delivering predictable and reliable processing results
High-Efficiency Double-Sided Simultaneous Processing
The dual-surface processing capability provides significant advantages over conventional single-sided grinding approaches:
- Productivity Enhancement: Simultaneous processing of both surfaces boosts productivity several times compared to traditional single-sided grinding or lapping operations
- Geometric Accuracy: Dual-surface processing ensures perfect parallelism and thickness control, eliminating potential inconsistencies between sequential operations
- Reduced Processing Time: Single-operation processing eliminates setup and handling time between operations, significantly reducing total cycle times
- Batch Production Optimization: High-capacity processing enables efficient handling of large production batches, making these systems ideal for volume manufacturing environments
Ultra-Long Service Life and Cost Efficiency
The exceptional wear resistance and durability of ceramic diamond double disc grinding wheels deliver significant economic benefits:
- Extended Wheel Life: Single grinding wheel capacity to process hundreds of thousands of components dramatically reduces tooling costs per part
- Reduced Maintenance Requirements: Low dressing frequency minimizes machine downtime for maintenance and wheel conditioning
- Consistent Performance: Extended wheel life ensures consistent processing quality throughout the wheel's service life, eliminating performance degradation concerns
- Lower Total Cost of Ownership: Reduced tooling costs, maintenance requirements, and downtime combine to deliver exceptional overall cost efficiency
Optimized Performance for Hard and Brittle Materials
Ceramic diamond double disc grinding wheels are specifically engineered to address the unique challenges presented by hard and brittle materials:
- Chipping Reduction: Advanced cutting action minimizes edge chipping and material damage during processing, critical for maintaining ceramic component integrity
- Crack Prevention: Optimized grinding parameters reduce stress concentrations that can lead to sub-surface cracking in brittle ceramic materials
- Ductile-Mode Grinding: Enables efficient material removal in ductile mode rather than brittle fracture, preserving material properties and surface quality
- Surface Integrity: Maintains surface integrity while achieving precise dimensional control, essential for ceramic component performance and reliability
Customized Solutions and Technical Support
Comprehensive application support and customization capabilities ensure optimal performance for specific manufacturing requirements:

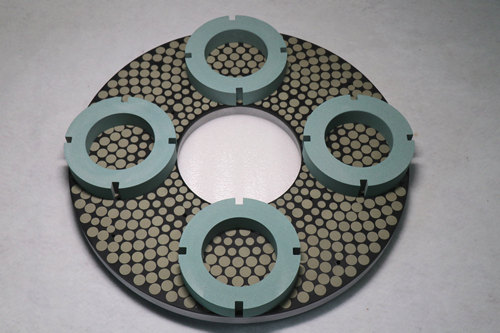

- Matched Dressing Wheel Solutions: Precision-matched dressing wheels ensure optimal wheel geometry and cutting performance throughout the wheel's service life
- Grit Size Optimization: Selection of appropriate diamond grit sizes based on specific material requirements and surface finish specifications
- Structure Customization: Tailored bond structures optimized for specific materials, production volumes, and quality requirements
- Machine Integration: Complete compatibility with major double disc grinding machine brands including Speedfam, Peter Wolters, Lapmaster, DISKUS, and YHDM
Comprehensive Application Scenarios
Electronic Component Manufacturing
The electronics industry relies heavily on precision ceramic components for substrates, insulators, and structural components:
- Circuit Board Substrates: Ceramic substrates requiring precise thickness control and surface quality for electronic circuit applications
- Semiconductor Components: Precision ceramic components for semiconductor manufacturing equipment requiring exceptional geometric accuracy
- Insulator Components: High-voltage insulators and electrical isolation components demanding precise dimensional control and surface finish
- Heat Sinks: Ceramic thermal management components requiring flatness for optimal thermal contact
Precision Mechanical Components
Mechanical systems utilize ceramic components for their wear resistance and dimensional stability:
- Seal Rings: Precision ceramic seals requiring exceptional flatness and surface quality for reliable sealing performance
- Valve Plates: Ceramic valve components demanding precise geometric accuracy and surface finish for proper function
- Bearing Components: Ceramic bearing parts requiring precise dimensional control and surface quality for optimal performance
- Wear Plates: Ceramic wear components requiring precise thickness control and surface quality for extended service life
Aerospace and Defense Applications
Critical aerospace and defense applications utilize ceramic components for their exceptional properties:
- Thermal Protection Systems: Ceramic thermal barrier components requiring precise dimensional control for optimal performance
- Structural Components: Lightweight ceramic structural components demanding exceptional geometric accuracy and surface integrity
- Sensor Components: Precision ceramic sensor housings requiring precise dimensional control for accurate sensing performance
- Radar and Communication Components: Ceramic components for radar and communication systems requiring precise dimensional accuracy
Machine Compatibility and Integration
Ceramic diamond double disc grinding wheels are designed for seamless integration with major double disc grinding machine platforms:
- Speedfam Systems: Optimized for Speedfam double disc grinding equipment, ensuring proper fit and performance characteristics
- Peter Wolters Machines: Compatible with Peter Wolters double disc grinding systems for precision processing applications
- Lapmaster Equipment: Engineered for Lapmaster double disc grinders, providing reliable performance and consistent results
- DISKUS Systems: Designed for DISKUS double disc grinding machines, ensuring optimal performance and wheel life
- YHDM Equipment: Compatible with YHDM double disc grinding systems for diverse processing applications
This broad machine compatibility enables manufacturers to implement ceramic diamond double disc grinding solutions across existing equipment platforms without requiring extensive modifications or new equipment investments.
Quality Assurance and Process Control
Comprehensive quality assurance systems ensure consistent performance and reliable results across production environments:
- Incoming Material Inspection: Rigorous inspection of incoming ceramic blanks to ensure dimensional consistency and material quality
- Process Parameter Optimization: Systematic optimization of grinding parameters for specific materials and quality requirements
- In-Process Monitoring: Real-time monitoring of grinding performance to ensure consistent quality throughout production runs
- Final Inspection Protocols: Comprehensive inspection of finished components to verify compliance with quality specifications
- Statistical Process Control: Implementation of statistical process control methods to ensure ongoing process capability and consistency
Economic Benefits and ROI Analysis
Investment in ceramic diamond double disc grinding technology delivers substantial economic returns:
- Reduced Processing Costs: Higher production efficiency and longer wheel life reduce overall processing costs per component
- Improved Quality: Consistent processing quality reduces scrap rates and rework requirements
- Increased Throughput: Higher production capacity enables increased revenue without additional equipment investment
- Reduced Labor Requirements: Automated processing reduces manual labor requirements and associated costs
- Enhanced Competitive Position: Superior processing capabilities enable manufacturers to compete in higher-value markets
Future Trends and Technology Development
The ceramic diamond double disc grinding industry continues to evolve with advancing technology and changing market requirements:
- Advanced Material Processing: Enhanced capabilities for processing emerging ceramic materials and composites
- Smart Manufacturing Integration: IoT-enabled grinding systems with real-time monitoring and predictive maintenance
- Sustainable Manufacturing: Environmentally friendly bond systems and processes reducing environmental impact
- Digital Twin Technology: Virtual simulation and optimization of grinding processes before physical implementation
Conclusion: Excellence in Ceramic Processing
Ceramic diamond double disc grinding represents the pinnacle of precision processing technology for hard and brittle materials. Through exceptional geometric accuracy, superior surface quality, and outstanding productivity, these advanced grinding solutions enable manufacturers to achieve levels of precision and efficiency that were previously unattainable.
As the demand for advanced ceramic components continues to grow across diverse industries, the importance of precision processing technology cannot be overstated. Ceramic diamond double disc grinding solutions provide the foundation for manufacturing excellence, enabling companies to meet the most demanding quality requirements while maintaining competitive production efficiency.
Investing in ceramic diamond double disc grinding technology represents a strategic commitment to manufacturing excellence, positioning companies for success in today's competitive global marketplace while preparing for tomorrow's technological challenges and opportunities.
