JM Series Precision Leveling Machine
After more than 20 years of research and development on precision leveling machinery for metal materials, our company has entered the stage of serialized design and manufacturing for precision leveling equipment for metal sheets. The main models include JM120/19 (thin material series), JM2520/21 (standard material series), JM3535/21 (high-strength material series), JM5065/21 (thick and wide material series), etc. The primary function of the JM series precision leveling machine is to perform precision leveling and correction on the bending and twisting deformations of metal sheet products and coil materials.
I. Main Functions and Usage Introduction of Precision Leveling Machine

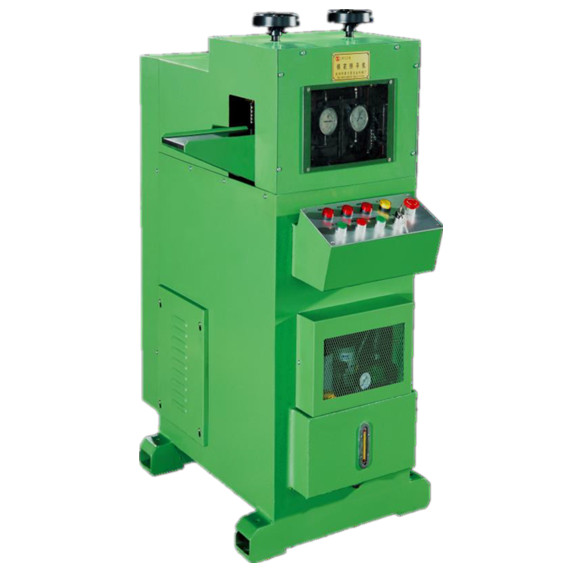

The JM120 precision leveling machine is designed for the product characteristics of ultra-thin textile machinery parts, clock parts, electronic instrument parts, and other sheet and strip materials, thus featuring the following characteristics:
1. Wide Applicability
This machine can level materials with thickness 0.2–1.5mm, width less than 120mm, length greater than 30mm, and yield strength σb ≤ 300MPa, including all carbon steel, stainless steel, non-ferrous alloys, and other sheet products as well as coil materials. It is also an ideal matching equipment for pre-stamping leveling of high-speed stamping coil materials. At the same time, it is a relatively ideal process equipment for eliminating material stress and avoiding deep drawing cracks.
2. High-Leveling Precision
After leveling with this machine, the workpiece can achieve a flat, smooth, and uniformly colored surface, with flatness ≤ 0.05mm (based on a 50x50x1mm Q235 sample plate).
3. Easy Operation and High Efficiency
This machine adopts stepless speed regulation, allowing the workpiece to automatically pass through the leveling machine at a line speed of 5.5-10m/min. Once the leveling parameters are adjusted, the machine can operate continuously without requiring other operational skills.
4. Low Energy Consumption and High Safety
The total power of this machine is less than 1.5kW; it causes no environmental pollution; low noise; and complete safety protection measures.
II. Main Technical Parameters
| Parameter | Details
|-------------------------- ---|----------------------------------
| 1. Leveling Capacity | Workpiece thickness: 0.2-1.5mm<br>Width: ≤120mm<br>Length: ≥30mm
| 2. Leveling Efficiency | 5.5-10m/min
| 3. Number of Work Rolls | 19
| 4. Work Roll Diameter | 14mm
| 5. Main Motor Power | 1.1kW
| 6. Overall Dimensions | 950x820x1150mm
| 7. Weight | 300kg
