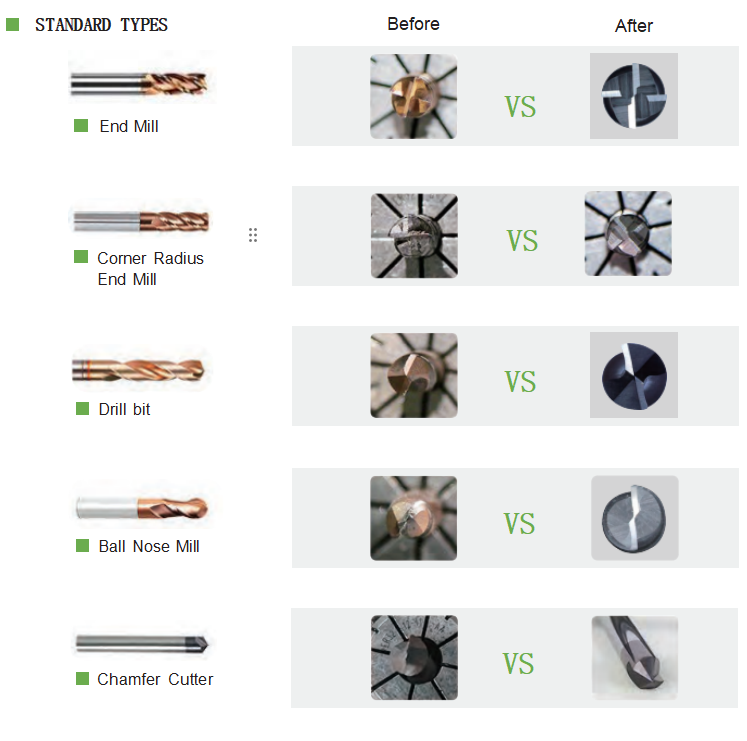

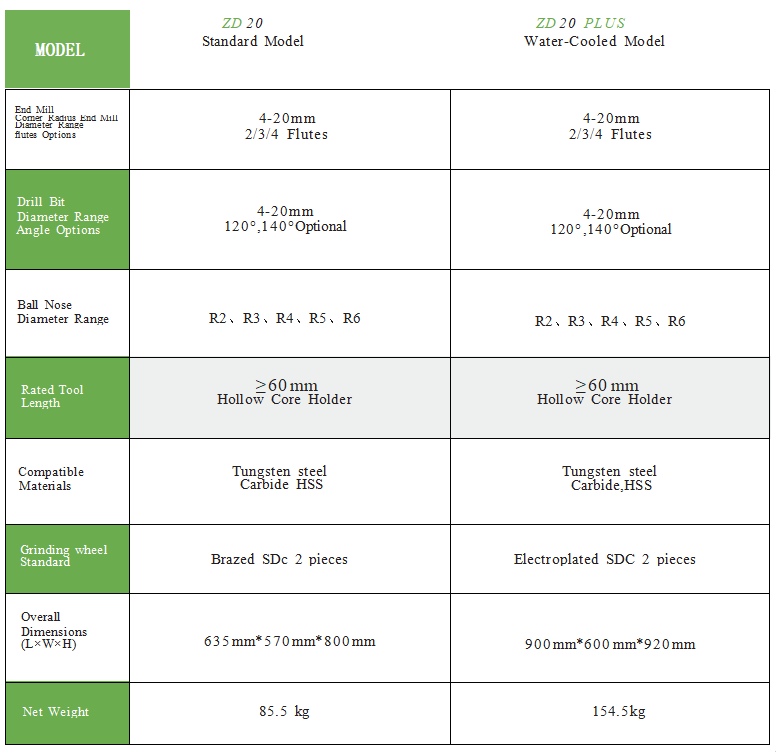

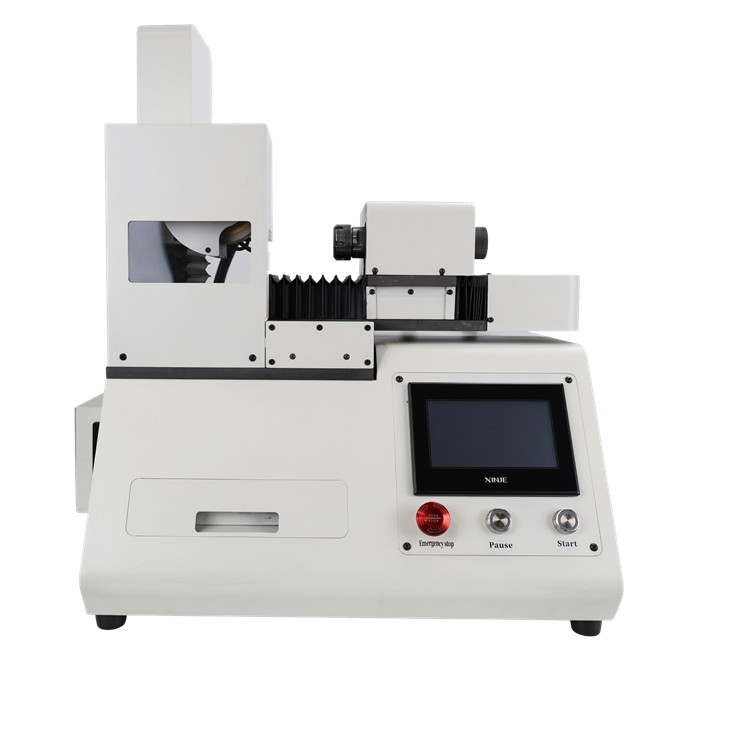

ZD20 Standard Model: The standard configuration supports sharpening for 5 tool types: chamfering tools, drill bits, end mills, corner radius end mills, and ball nose end mills.

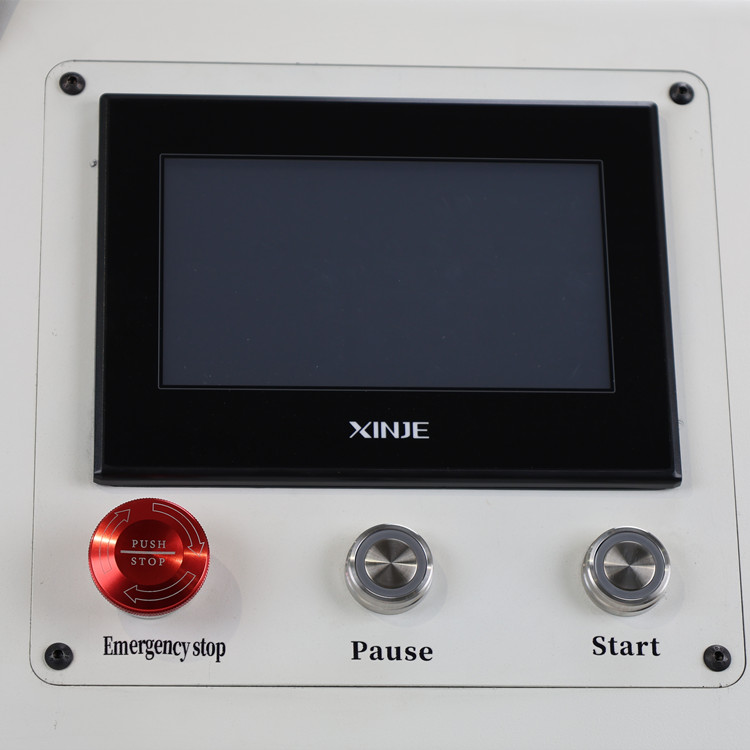

Optional accessories are available for parabolic drills, single-flute end mills, sheet metal drills, and PM (powdered metal) drills. The built-in dust extraction system effectively reduces dust pollution. The user-friendly PLC control system allows for easy operation, making it suitable for beginners with zero prior experience.

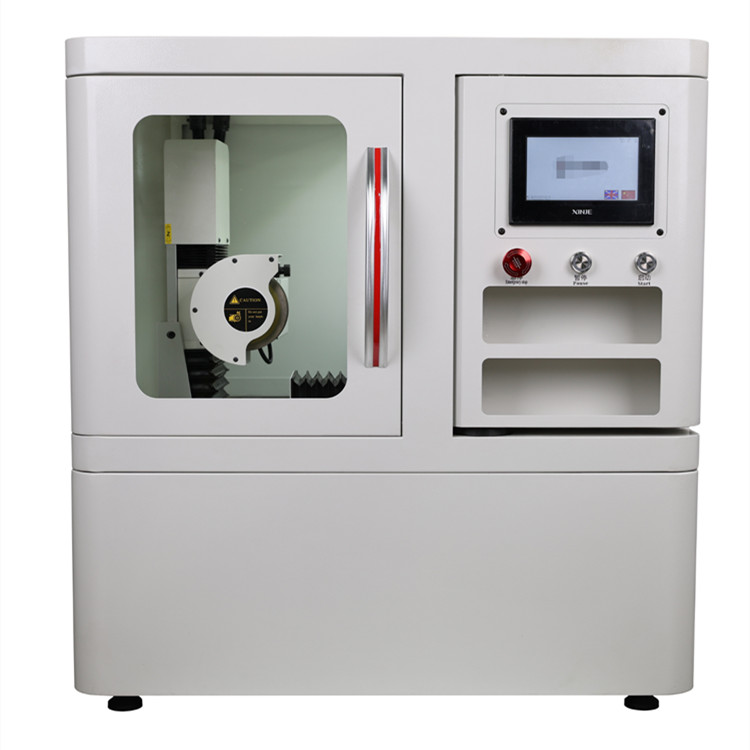

ZD20 PLUS Water, Cooled Model: This model also supports sharpening for 5 tool types: chamfering tools, drill bits, end mills, corner radius end mills, and ball-nose end mills, with optional accessories for parabolic drills, single-flute end mills, sheet metal drills, and PM drills. The water-cooled grinding process significantly enhances tool surface finish and extends the grinding wheel's service life. Its fully enclosed housing design ensures a pollution-free grinding environment.
CUTTING EDGE ADVANTAGE
1. Unlimited Capacity: Through-spindle extended design on all models accepts tools of any length.
2. Operation-Ready Safety: Integrated dust extraction system is included as standard for a cleaner, safer workspace.
3. Future-Proof Flexibility: Standard Configuration Supports 5 Tool Types; Grinding Capabilities are Continuously Expandable and Updated.
