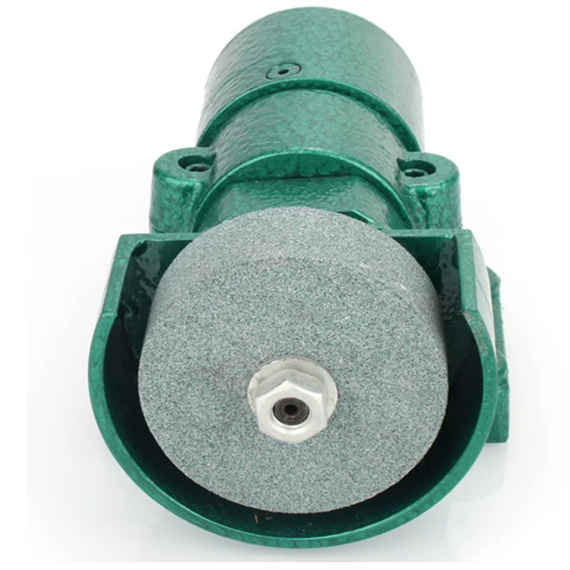

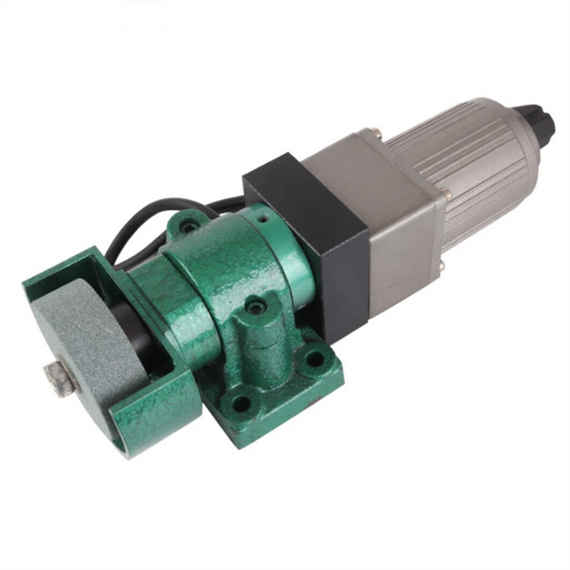

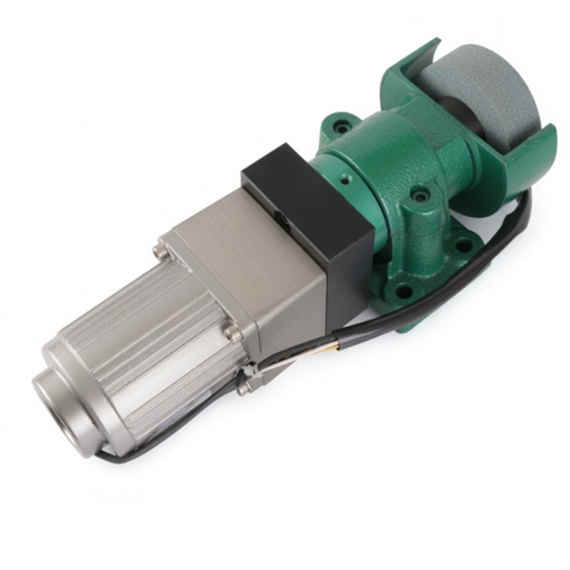

The compact electric diamond grinding wheel dresser is a specialised piece of equipment designed specifically for dressing CBN and diamond grinding wheels. Combining precision manufacturing technology with outstanding performance, it provides customers with an efficient, accurate and reliable grinding wheel dressing solution.
Technical Specifications：
Grinding wheel dimensions: Φ75 × 25 × 12.5 mm
Suitable grinding wheel types: CBN grinding wheels, diamond grinding wheels
Spindle Accuracy: High-precision bearings ensure micron-level dressing accuracy
Operating Noise: Low-noise design optimises the workshop environment
Housing Material: High-quality corrosion-resistant material enhances the equipment’s durability
Key Technical Advantages
1. High-precision spindle system
Fitted with industrial-grade high-precision bearings
Ensures minimal spindle radial runout
Stable operation and consistent dressing accuracy over time
Suitable for the demands of precision machining environments
2. Outstanding Planar Dressing Capability
Produces a flat and smooth dressed surface
Excellent precision retention
Highly efficient and durable, reducing the frequency of dressing
Extends the service life of the grinding wheel
3. High-Performance Design
Supports high-speed machining requirements
Long service life and low maintenance costs
Low operating noise, meeting environmental protection requirements
Compact structure with a small footprint
4. Superior Protection Design
High-quality, corrosion-resistant housing
High protection rating, suitable for harsh environments
Simple maintenance and easy cleaning
Attractive appearance, enhancing the workshop’s image
Scope of Application
Grinding wheel types: CBN grinding wheels, resin-bonded diamond grinding wheels
Workpieces for dressing: All types of grinding wheels used in precision machining
Application scenarios: CNC machinery, precision grinding machines, tool grinding machines, etc.
Ease of Installation and Use
Compact structure, simple installation
Easy to operate, no specialist skills required
Convenient maintenance, reducing operating costs
Suitable for use with all types of machine tools
