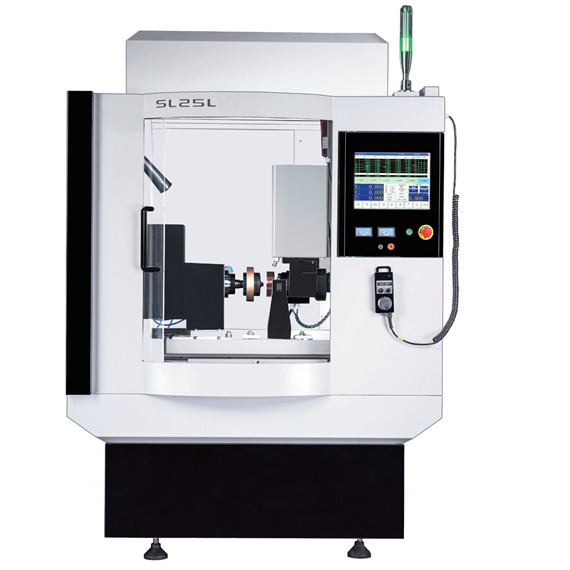

Features of Ultra-hard Material Grinding Wheel EDM Machine
High-efficiency and precise processing can automatically process grinding wheels with a diameter of 300mm or less and a weight not exceeding 10KG, and is equipped with a dressing servo feed function. The minimum radius of the turning arc is 0.1mm. It has circumferential and radial servo modes, and the processing accuracy reaches ±0.02mm, meeting the high-precision requirements.
Advanced Process Guarantee
Equipped with a dedicated power supply to reduce diamond particle burns. It is equipped with online electrode repair and compensation functions to ensure that the electrode is always in the best condition and maintain a stable processing effect.
Convenient protection design
It adopts the standard interface of CNC machine tools, facilitating equipment connection. The machine tool is fully enclosed and protected to prevent the splashing of processing fluid, ensuring operational safety and a clean processing environment.
The machine tool adopts an integrated design and is specially designed for metal-bonded grinding wheels. It is easy to install, leaving ample operating space for operators and significantly enhancing work convenience.

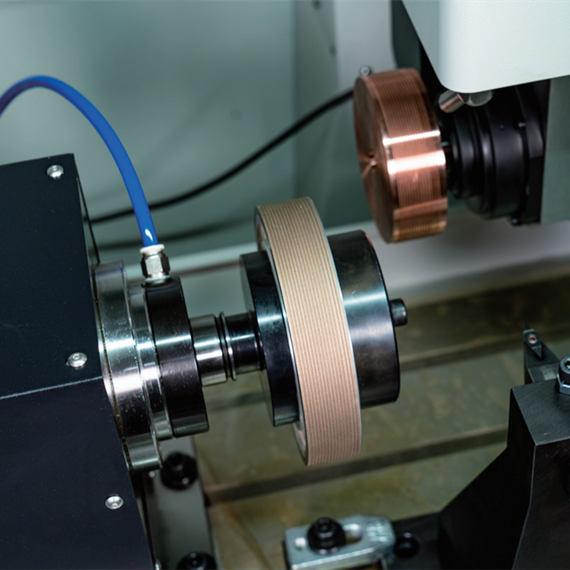

The high-precision characteristics of the electrical discharge machining special machine are remarkable: the workpiece and the electrode can rotate relatively, and the processing accuracy exceeds that of ordinary electrical discharge machining equipment.
The intelligent operation advantages of the dedicated electrical discharge machining machine are significant: it can automatically adjust the electrode according to the predicted wear and tear, can adjust the electrode online, support the online forming of CAD format graphics, and has high servo processing accuracy, comprehensively enhancing the intelligent operation level and processing efficiency.
Applications of Ultra-hard Material Grinding Wheel EDM Machine
●The processing objects are metal-bonded diamond grinding wheels and metal-bonded CBN grinding wheels.
●It is suitable for the production of grinding tools for hard and brittle materials such as cemented carbide, ceramics and glass.
●It can automatically complete shape processing based on design drawings, meeting various processing requirements.
