Double Disc Fine Grinding Machine

A vertical double disc grinding machine is a highly versatile grinding machine that features two vertical grinding wheel shafts facing each other. This unique configuration allows for a wide range of machining patterns, accommodating diverse grinding requirements. From heavy grinding operations to high-precision grinding, and from mass production to multi-product, small-scale production, this machine provides manufacturers with a reliable and flexible solution for their grinding needs.



The design of the vertical double disc grinding machine enables simultaneous grinding on both sides of a workpiece, ensuring precise and uniform material removal. The opposing vertical grinding wheel shafts provide enhanced stability and control during the grinding process, resulting in exceptional surface quality, dimensional accuracy, and minimized workpiece damage.

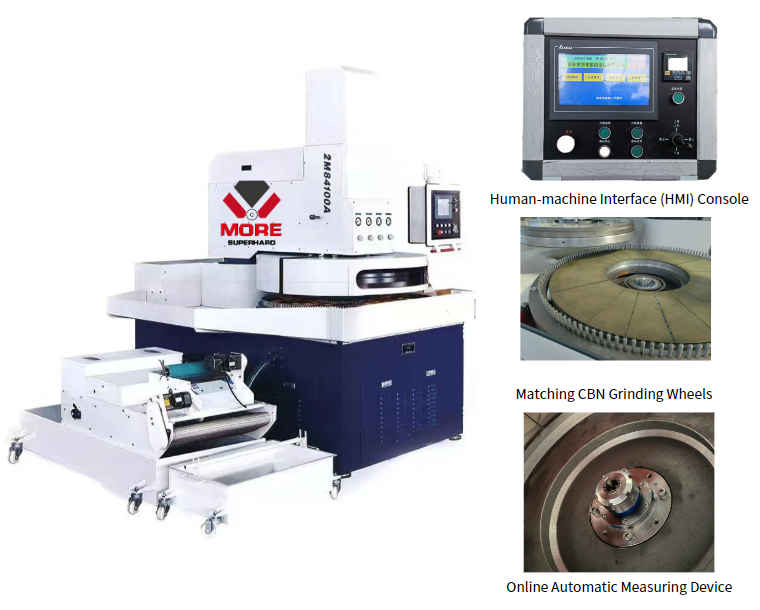

Advantages of Moresuperhard Double Disc Fine Grinding Machine:



1.  High rigidity and High precision base
2.  Easy to adapt the customer requirements
3.  Non-contact measurement system, more precise and durable
4. Automatic step less pressure control
5.  Semi-automatic loading and uploading
6. Touch screen interface, easy to control
7.  Fault alarm function

Applications of Double Disc Fine Grinding Machine:

With its versatility, this machine can handle a variety of materials, including ferrous and non-ferrous metals, alloys, ceramics, and composites. Whether machining hardened steels, stainless steels, tool steels, or exotic alloys, the vertical double-disc grinding machine offers the necessary power, precision, and rigidity to achieve optimal grinding results.

Precision Bearing Processing Industry



CNC Inserts Processing Industry

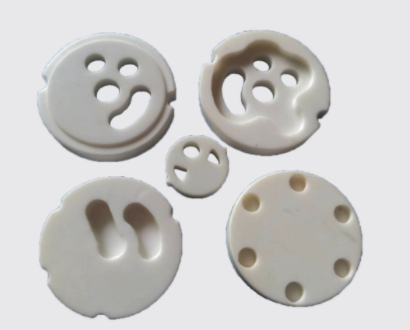

Precision ceramic processing Industry



Hydraulic Machinery Parts processing Industry

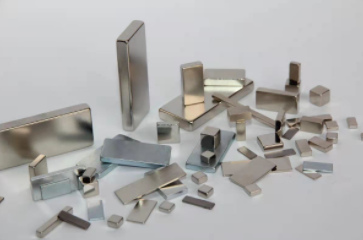

Magnetic Material Processing Industry



Automotive Parts Processing Industry



Air Conditioning and Refrigerator Compressor Parts Processing Industry



Working Method of Double Disc Fine Grinding Machine:

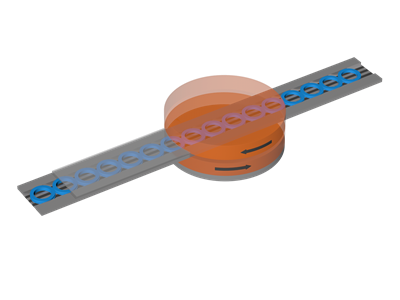

Precise machining of stamped and flat parts using a through-feed, plunge-cut or oscillation process.




Diamond polishing paste, diamond compound is a kind of material for polishing and lapping, which consists of diamond micro powder and corresponding grinding aids.


The main application of Diamond polishing paste, diamond compound

-Polishing of metal workpieces (such as measuring tools, cutting tools, knives, molds, etc.)

-Grinding and polishing of tungsten steel molds, optical molds, injection molds, etc.

-Grinding and polishing of jewelry, jade, gems and agate crafts

-Optical lenses, crystals, wafers, integrated circuits, quartz wafers, monocrystalline silicon wafers, sapphire, semiconductors

-Grinding and polishing of precision ceramics, magnetic materials, magnetic heads, iron hydrochloride, cemented carbide

-Fine grinding of metallographic and petrographic samples of high-hardness materials, etc.

-Precision medical equipment, dental materials (dentures) grinding and polishing

Advantages of high precision diamond polishing paste

 Diamond polishing paste, diamond compound has better lubrication and cooling performance, high grinding efficiency, good surface processing quality, better finish, easy to use, etc.
