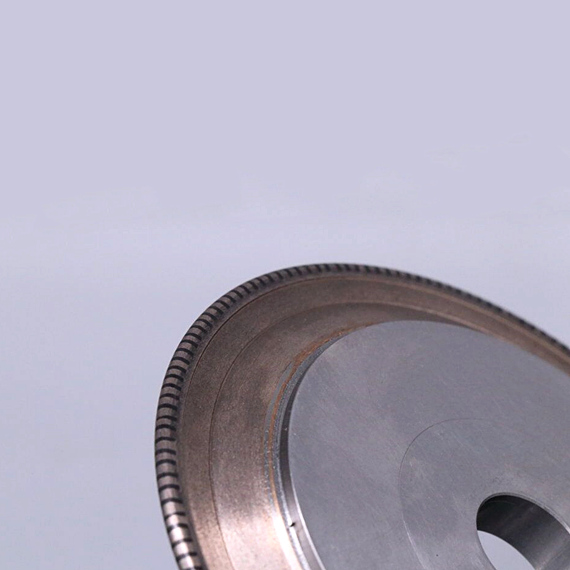

Dressing disc
Dressing disc
Dressing disc
Dressing disc
Dressing disc
Dressing disc

Profile Rotary Dresser Roller

1.High production efficiency, long service life and low cost of dressing of individual parts.

2.It can maintain the stability of parts precision and the high qualified rate of products for a long time.

3.For some parts whose complex surface or other imitation dressing is difficult to meet the requirements, the Rotary dresser can obtain satisfactory results.

4.Easy to operate.

5.High utilization of CNC machine , easy to achieve automation and mass production.


Profile rotary dresser roller

The CNC dressing technique can be used in all fields of grinding production, especially for small and medium production lot sizes and for prototype applications. The profile of the grinding wheel is created by the CNC controlled process that moves the rotating form roll along the target contour. Form rolls are therefore not restricted to a specific workpiece but can be used flexibly.

More diamond dressing rolls are used successfully in the following applications:

•  the manufacture of ball and roller bearings,for grinding raceway profiles.
•  drive technology for manufacturing linear guides, ball screws, gear teeth or racks.
•  turbine industry for grinding the blades as well as the blade root and fir tree profiles.
•  the automotive and -supply industry for grinding camshafts, crankshafts and gear shafts, fuel injection components, piston rings, joints, ball screw drives etc.
•  grinding of precision tools such as taps, twist drills, milling cutters, reamers etc.
•  general mechanical engineering for grinding hydraulic or pump components.


The advantages of profile roller dressers are

• Reduction of dressing costs per workpiece
• Optimized utilization of machine capacity
• Automation of the dressing process
• Repeatable high precision with low workpiece rejects
• Rapid incorporation of complex profiles in the grinding wheel


Form rotary diamond roll

Dressing with rotating diamond tools has been found to be a reliable technique in series and performance grinding processes, especially those applications using vitrified bonded grinding wheels.

Type of diamond rolls


Technology Code Diamond distribution Diamond
Dressing disc Sintered MS Hand Setting Max
Reverse-Sintered MR Hand Setting
Electroplated ME Randomness

Standard forms
