Grinding precision guide components — including automotive pulleys, linear motion (LM) guides, and high-precision double guide ball bearings — requires strict control over profile accuracy and surface roughness. The clearance, fitting accuracy, and assembly quality of finished products directly affect production stability and end-user experience.
In precision grinding,
grinding wheel dressing is critical to ensure workpiece accuracy. Two common dressing methods are roller dressing and single-point turning dressing. Compared with turning dressing,
rotary diamond roller dressing provides higher precision, better efficiency, and longer service life. It is widely recognized as the preferred dressing solution for superhard grinding wheels in precision parts manufacturing.
Customer Success Case: Double Guide Ball Bearing Grinding
Customer Problem
A manufacturer producing double guide ball bearings could
not meet the required precision standards using traditional single-point diamond dressers.
- Workpiece: Double guide ball bearing
- Process: Form grinding
- Original tool: Single-point diamond dresser
- Customer requirement: Profile tolerance ±0.003mm, Surface roughness Ra ＜0.4μm

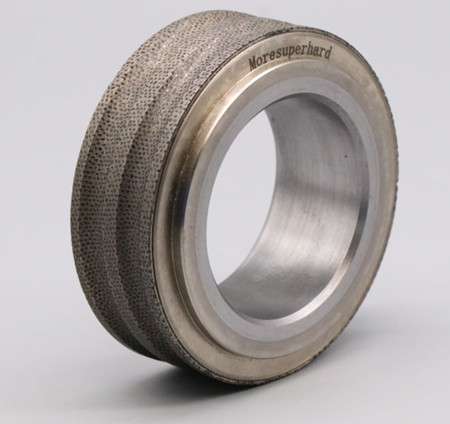

Based on on-site investigation and process analysis, we recommended replacing the single-point diamond pen with our
custom rotary diamond dresser for online grinding wheel dressing.

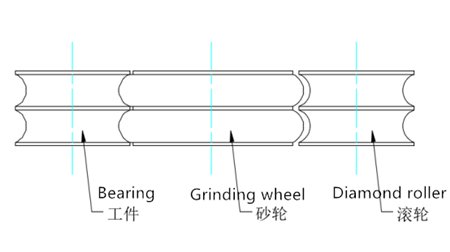

The diamond roller is designed with the
same profile as the bearing inner ring guide. It accurately dresses the grinding wheel, enabling consistent, high-precision grinding of the workpiece.
Optimized Dressing Parameters
We used a small speed ratio and fine feed rate to ensure stability and surface quality:
- Dresser speed: 15–20 m/s
- Grinding wheel speed: 60 m/s
- Feed rate: 0.003 mm per pass
Test Results (All Qualified)
| Measurement |
Value |
Result |
| Left Top |
0.0022 mm |
PASS |
| Left Bottom |
−0.0027 mm |
PASS |
| Right Top |
0.0029 mm |
PASS |
| Right Bottom |
−0.0026 mm |
PASS |
| Ra Value |
0.317 μm |
PASS |
All indicators fully meet customer requirements. The rotary diamond dresser solution successfully solved the accuracy and consistency issues of the original single-point dressing system
Key Customer Benefits
✅ Stable profile accuracy within ±0.003mm
✅ Surface roughness Ra＜0.4μm achieved consistently
✅ Higher production efficiency and yield
✅ Longer service life than single-point tools
✅ Lower overall production cost
Why Choose Our Rotary Diamond Dressers?
- Custom profile for bearing guides & LM rails
- High rigidity, high wear resistance, long service life
- Ideal for mass production & form grinding
- Perfect for superhard grinding wheel dressing
- Proven performance in automotive & precision bearing industries
