Electroplated vs Resin Diamond Belts: Which Is Better for Carbide Coating Grinding?

What Are Diamond Abrasive Belts and Why Do They Matter for Carbide Coatings?

Diamond abrasive belts are flexible coated abrasives embedded with industrial diamond particles, used for grinding, deburring, and polishing hard materials. They are indispensable for processing thermal-sprayed carbide coatings—such as tungsten carbide (WC) and chromium carbide (Cr₃C₂)—which typically exceed HV 1000 in hardness and rank among the toughest materials to machine. These coatings are widely applied in aerospace, oil & gas, automotive, and industrial components for wear resistance, corrosion protection, and thermal barrier properties. Achieving required dimensional accuracy and surface finish on such ultra-hard coatings demands diamond tooling—and among diamond belts, two bond types dominate: electroplated (metal bond) and resin (resin bond). Understanding their differences is critical for selecting the right tool, optimizing process cost, and delivering consistent part quality.

Electroplated vs Resin Diamond Belts: The Manufacturing Difference

The two belt types are fundamentally different in how diamond grains are held to the substrate.

Electroplated Diamond Belts

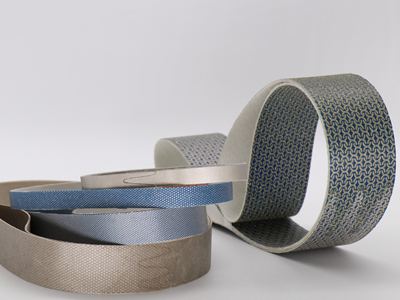

Electroplated diamond belts use a nickel electroplating process: a layer of nickel-based alloy is electrodeposited onto a metal or flexible substrate, simultaneously embedding a single layer of diamond grains into the metal matrix. The result is a single-layer abrasive structure where each diamond particle is locked in a rigid metal "armor." This design maximizes grain protrusion height and cutting sharpness, making electroplated belts highly aggressive for stock removal.

Resin Diamond Belts

https://www.mogrinding.com/products/grinding-wheels/electroplated-diamond-cbn-wheel/diamond-sanding-belts.html

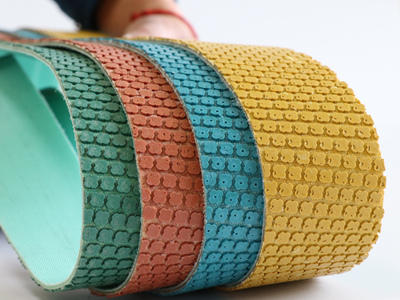

Resin diamond belts use phenolic resin or other organic polymer binders—sometimes blended with metal powders for enhanced strength—to bond multiple layers of diamond grains to a flexible backing (polyester or cloth). The multi-layer structure provides self-sharpening behavior: as surface grains wear, fresh grains from underlying layers are exposed. If electroplated belts are like "metal armor," resin belts are like "flexible padding"—combining diamond hardness with the conformability of traditional coated abrasives.

Head-to-Head Comparison for Carbide Coating Processing

1. Material Removal Rate: Electroplated Takes the Lead

In rough grinding and heavy stock removal on carbide coatings, electroplated diamond belts hold a clear advantage. Their single-layer structure uses higher-grade diamond with greater grain protrusion, delivering exceptional cutting sharpness and high removal rates. The rigid metal bond holds grains firmly under heavy loads, making electroplated belts ideal for aggressive roughing and form grinding. Resin belts, with lower grain exposure, remove material more conservatively. Where rapid coating removal is the priority—such as bringing a thermal-sprayed WC coating to near-net shape—electroplated belts are the more efficient choice.

2. Surface Finish Quality: Resin Wins for Precision

When the goal shifts to finish grinding and mirror polishing, resin diamond belts outperform. The flexible resin bond produces uniform, gentle cutting action that yields finer surface topography. In practical tungsten carbide polishing, resin belts consistently produce brighter, more reflective surfaces than electroplated belts. Resin belts can achieve Ra 0.1 µm and, with optimized parameters, even Ra 0.02 µm or below for ultra-precision finishing. Electroplated belts, while sharp, produce coarser grinding marks due to their rigid single-layer structure and are less suited for high-gloss finishing. Resin-bond diamond tools are widely recognized as the standard for precision carbide grinding and polishing.

3. Tool Life: Resin Lasts Longer in Most Cases

Although the metal bond of electroplated belts appears more durable, the single-layer design means that once the diamond grains dull or detach, the belt is exhausted—there is no reserve layer. Resin belts feature multiple abrasive layers: as the top layer wears, fresh diamond grains from beneath are continuously exposed, providing sustained cutting performance. This self-sharpening, multi-layer mechanism gives resin belts longer total service life in many applications. The caveat is cooling: resin bonds can soften under excessive heat, so adequate coolant or controlled dry-grinding parameters are essential to realize full tool life.

4. Cooling & Process Flexibility

Electroplated belts conduct heat efficiently through the metal bond—but under heavy loads with inadequate cooling, heat transfers rapidly to the substrate, potentially causing delamination or breakage. Wet grinding is generally recommended. Resin belts have lower thermal conductivity but good heat resistance, and can be used in both wet and dry grinding—a significant advantage where coolant cannot be used, such as certain aerospace component processing or on-site repair. For dry grinding, parameters must be controlled to avoid excessive temperature buildup.

5. Cost Analysis: Both Have Their Place

On a per-unit purchase basis, electroplated belts are generally more economical because the manufacturing process is simpler. However, when evaluating total cost per part, resin belts' longer service life can offset their higher upfront price, especially in high-volume finishing. The optimal choice depends on production volume, required finish, and the specific carbide coating. Many manufacturers find that a combined workflow—electroplated for roughing, resin for finishing—delivers the lowest total cost while meeting quality requirements.

Comparison of Electroplated vs Resin Diamond Belts for Carbide Coating Processing:

Comparison Dimension	Electroplated Diamond Belt	Resin Diamond Belt
Abrasive Structure	Single layer	Multi-layer
Material Removal Rate	★★★★★ (excellent for roughing)	★★★☆☆ (moderate)
Surface Finish	★★★☆☆ (coarser marks)	★★★★★ (Ra 0.1–0.02 µm achievable)
Tool Life	★★★☆☆ (single layer, no reserve)	★★★★★ (self-sharpening multi-layer)
Cooling Requirement	Wet grinding recommended	Wet or dry grinding
Flexibility / Conformability	Moderate	Excellent
Best Application	Rough grinding, heavy stock removal, forming	Finish grinding, polishing, mirror finishing

How to Choose the Right Diamond Belt for Carbide Coating Processing

Select based on your processing stage and requirements:

Rough grinding / heavy stock removal: Choose electroplated diamond belts (80–200 grit) for maximum material removal rate and form accuracy.
Finish grinding / polishing: Choose resin diamond belts (400+ grit) for fine surface finish, brightness, and consistent quality.
Mirror / ultra-precision finishing: Use resin diamond belts with 800–2000+ grit, progressing through grit steps to achieve Ra < 0.05 µm.
Dry grinding environments: Resin belts are the practical choice due to their wet/dry versatility.
High-volume production: Evaluate total cost per part—resin belts often deliver lower cost despite higher upfront price.
Complex curved surfaces: Resin belts offer superior conformability for irregular geometries.

Recommended Process Workflow for Carbide Coatings

For optimal results on tungsten carbide and other hard coatings, most manufacturers adopt a two-stage approach that combines the strengths of both belt types:

Stage 1 — Rough Grinding: Use 80–200 grit electroplated diamond belts to rapidly remove coating excess and achieve near-net shape and dimensional accuracy.
Stage 2 — Finish Polishing: Switch to 400+ grit resin diamond belts to refine surface topography, remove grinding marks, and achieve the target surface finish (Ra 0.1 µm or better).
Stage 3 (Optional) — Mirror Finishing: Progress through 800, 1200, and 2000+ grit resin belts for ultra-high-gloss mirror surfaces required in sealing or decorative applications.

This "electroplated roughing + resin finishing" combination maximizes throughput while ensuring the surface quality demanded by aerospace, oil & gas, and precision industrial components.

Why Choose Our Diamond Abrasive Belts

We are a professional manufacturer of electroplated and resin diamond abrasive belts, with extensive experience in carbide coating processing for aerospace, oil & gas, automotive, and industrial applications. Our belts are manufactured using premium-grade industrial diamonds and optimized bond formulations, delivering consistent cutting performance, long tool life, and reliable surface quality. We offer full customization—belt dimensions, grit size, diamond grade, bond type, and backing material—to match your specific workpiece, coating, and machine requirements. Our application engineers provide process support, including grit sequence recommendations and parameter optimization, to help you achieve the lowest cost per part. Contact us today for a customized diamond belt solution and technical consultation.

Conclusion

Electroplated and resin diamond belts are not competitors but complementary tools for carbide coating processing. Electroplated belts excel in rough grinding and heavy stock removal, offering high sharpness and fast material removal. Resin belts dominate finish grinding and polishing, delivering superior surface finish, longer tool life through self-sharpening multi-layer construction, and wet/dry versatility. For most carbide coating applications, the optimal strategy is a combined workflow: electroplated belts for efficient roughing, followed by resin belts for precision finishing. By understanding the strengths of each type and selecting the right belt for each processing stage, manufacturers can achieve both high productivity and exceptional part quality on even the hardest carbide coatings.

Frequently Asked Questions

Q: What is the difference between electroplated and resin diamond belts?
A: Electroplated diamond belts use a nickel metal bond to hold a single layer of diamond grains, offering high sharpness for rough grinding. Resin diamond belts use a phenolic resin bond with multiple diamond layers, providing self-sharpening behavior, finer surface finish, and longer tool life for finishing and polishing.

Q: Which diamond belt is best for tungsten carbide coating rough grinding?
A: Electroplated diamond belts are preferred for rough grinding tungsten carbide coatings. Their single-layer high-grade diamond with large protrusion delivers aggressive cutting and high removal rates. Use 80–200 grit electroplated belts for efficient stock removal and form grinding.

Q: Can resin diamond belts achieve mirror finish on carbide coatings?
A: Yes. Resin diamond belts can achieve Ra 0.1 µm in standard finishing and Ra 0.02 µm or below in ultra-precision mirror polishing using fine grits (800–2000+) with optimized parameters. Progressing through sequential grit steps yields the best mirror results on tungsten carbide and chromium carbide.

Q: How long do diamond belts last when grinding carbide coatings?
A: Tool life depends on belt type, grit, coating hardness, and parameters. Electroplated belts last until their single layer is exhausted. Resin belts, with multi-layer self-sharpening construction, generally last 2–3x longer in finishing applications—provided adequate cooling is maintained.

Q: Can diamond belts be used for dry grinding of carbide coatings?
A: Resin diamond belts can be used for both wet and dry grinding, making them suitable where coolant cannot be used. Electroplated belts generally require wet grinding due to high thermal conductivity and risk of heat-induced delamination. For dry grinding, always control parameters to avoid excessive heat.

Q: What grit sequence is recommended for carbide coating processing?
A: A typical sequence: 80–120 grit electroplated for heavy roughing, 180–240 grit for intermediate grinding, then 400–600 grit resin for finishing, and 800–2000+ grit resin for mirror polishing. The exact sequence depends on coating thickness, tolerance, and target finish. Our engineers can recommend an optimized sequence.
